EXAMPLES
 PUNCHED DISC BRUSHES

On disc brushes the working surface is perpendicular with respect to the axis of rotation so these styles, which are motor driven, are suitable for processing flat surfaces The working surface can be continuous or in segments.


 REQUEST FOR OFFER (RFO)

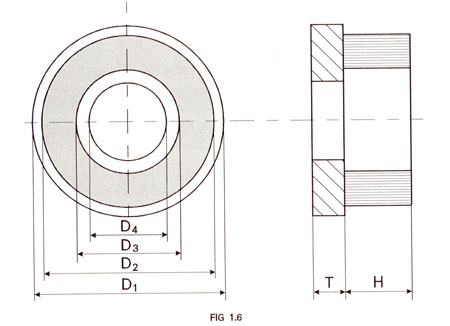

For orders and requests for quotations please fill in table 1.6 whose symbols refer to figures 1.3 and 1.6.
In this type of brush tufts are arranged on the concentric circles. For PL must therefore understand the pitch of the tufts on the circle.


 TABLE 1.6
 N° pieces
D1=
mm
D4=
mm
T=
mm
H=
mm
D2=
mm maximum possible
D3=
mm minimum possible
PL=
mm (step tufts on circumference)
NF=
(number of concentric rows)
D=
mm (tuft diameter)
 BODY MATERIAL   FILAMENT DIAMETER
D=
mm
 FILAMENT MATERIAL  straightcrimpedwhiteblack

 NAME
 COMPANY
 PHONE
 FAX
 E-MAIL
 NOTES
