  PUNCHED ROLLER BRUSHES

Roller brushes are the most widely used brush types in industry, where they can be found in a large number of manufacturing processes. Roller brushes are generally motor driven and hence equipped with a metal core suitably designed to withstand high torque loads.
Roller brushes can also be supplied however without a metal core.


 REQUEST FOR OFFER (RFO)

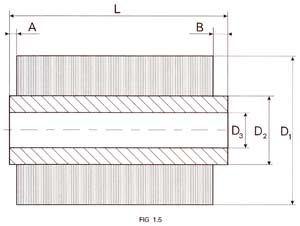

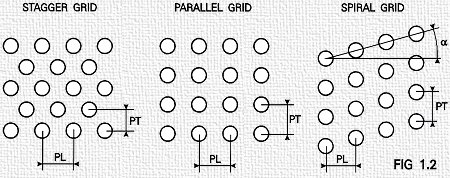

For orders and requests for quotations please fill in table 1.5 whose symbols refer to figures 1.2, 1.3 e 1.5.



 TABLE 1.5
 N° pieces
D1=
mm
D2=
mm
D3=
mm
L=
mm
A=
mm minimum possible
B=
mm minimum possible
PL=
mm (longitudinal pitch)
PT=
mm (cross pitch))
D=
mm (tuft diameter)  RETICULUM staggeredparallelhelical
 BODY MATERIAL   FILAMENT DIAMETER
D=
mm
 FILAMENT MATERIAL  straightcrimpedwhiteblack
 POSSIBLE TUFT ANGLINGI
longitudinal  degree =
transversal

 NAME
 COMPANY
 PHONE
 FAX
 E-MAIL
 NOTES
