 SEGMENT STRIP BRUSHES

The segment strip brushes are roller brushes made of linear stripes (segments) mounted onto a metallic core by means of holders.
The arrangement of the helical strip allows continuous brushing action. Moreover, the gaps between sectors enable the brush to easily download the debris that is collected during the rotation.
A further advantage of segment strip brushes is that the strips are interchangeable, so once worn can be replaced without removing the entire brush.


 REQUEST FOR OFFER (RFO)

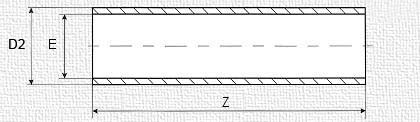

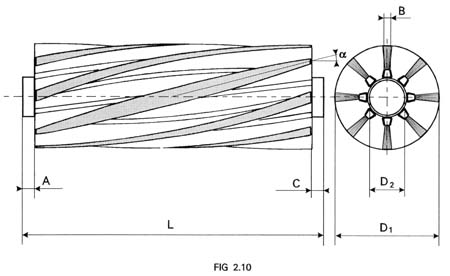

If you require an offer for a segment strip brush mounted on pipe, please complete Table 2.7, on Figure 2.10. But if you need a segment strip brush with a different core , choose the type of core:


REQUEST FOR SEGMENT STRIP BRUSH MOUNTED ON TUBE


 TABLE 2.7
 N° pieces
SINGLE BAND DOUBLE BAND
GALVANIZED BASE STAINLESS BAS
D1=
mm
D2=
mm
L1=
mm
C=
mm
E=
mm
Z=
mm
A=
mm
B=
mm
α=
 helix angle
NS=
 number of strip
 FILAMENT MATERIAL
 FILAMENT DIAMETER
d=
mm
straightcrimpedwhiteblack  RIGHT HAND SPIRAL  LEFT HAND SPIRAL

 NAME
 COMPANY
 PHONE
 FAX
 E-MAIL
 NOTES
