 FLAT BRUSHESE

FLAT BRUSHES are generally installed on fixed parts of the machine, although they may also be installed on cylindrical drums to create a roller or on reciprocating slides. The working surface can be continuous, divided by segments, or profiled to customer specifications. The flatness of these brushes is frequently of critical importance, both in relation to the brush body and the trimming process that defines the shape of the working surface.


 REQUEST FOR OFFER (RFO)

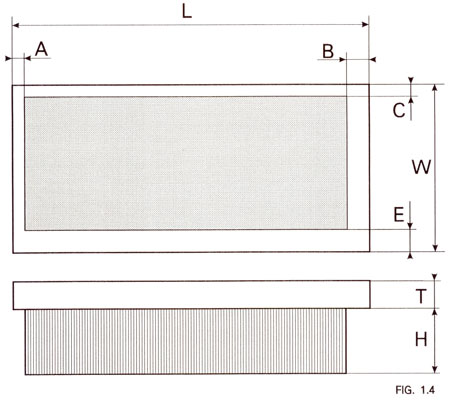

For orders and requests for quotations please fill in table 1.4 whose symbols refer to figures 1.2, 1.3 e 1.4.


 TABLE 1.4
 N° pieces
L=
mm
W=
mm
T=
mm
H=
mm
A=
mm minimum possible
B=
mm minimum possible
C=
mm minimum possible
E=
mm minimum possible
PL=
mm (longitudinal pitch)
PT=
mm (cross pitch))
D=
mm (tuft diameter)  RETICULUM staggeredparallel
 BODY MATERIAL   FILAMENT DIAMETER
D=
mm
 FILAMENT MATERIAL  straightcrimpedwhiteblack
 POSSIBLE TUFT ANGLINGI
longitudinal  degree =
transversal

 NAME
 COMPANY
 PHONE
 FAX
 E-MAIL
 NOTES
