 SPIRAL STRIP BRUSHES

A roller brush can be created by wrapping a strip around a cylindrical metal core in a spiral shape. The spiral pitch can be approached in order to obtain a work surface dense and uniform.


 REQUEST FOR OFFER (RFO)

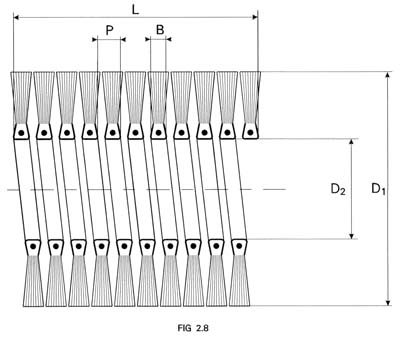

If you require an offer for a spiral strip brush without core (free spiral), please complete Table 2.6, on Figure 2.8. But if you need a spiral strip brush already locked on the core (technical solutions recommended), choose the type of core:


REQUEST FOR ROLLER STRIP BRUSHES - FREE SPIRAL


 TABLE 2.6
 N° pieces
SINGLE BAND DOUBLE BAND
GALVANIZED BASE STAINLESS BAS
D1=
mm
D2=
mm
L=
mm

B=
mm
P=
mm
 FILAMENT MATERIAL
 FILAMENT DIAMETER
d=
mm
straightcrimpedwhiteblack  RIGHT HAND SPIRAL  LEFT HAND SPIRAL

 NAME
 COMPANY
 PHONE
 FAX
 E-MAIL
 NOTES
